Authorize DotNet Core Web API with JWT with Ease!

Getting Started

Let's first start by creating an empty WebAPI project.

dotnet new webapi MyTestProject

This will create a new WebAPI project without any built-in authentication. We will create a home-made authentication system in another tutorial, but for now we just want to focus on the JWT setup.

Let's first test our new API, hitting the weatherforecast/ route using PostMan. This route is provided to you as an example when creating a new WebAPI project.

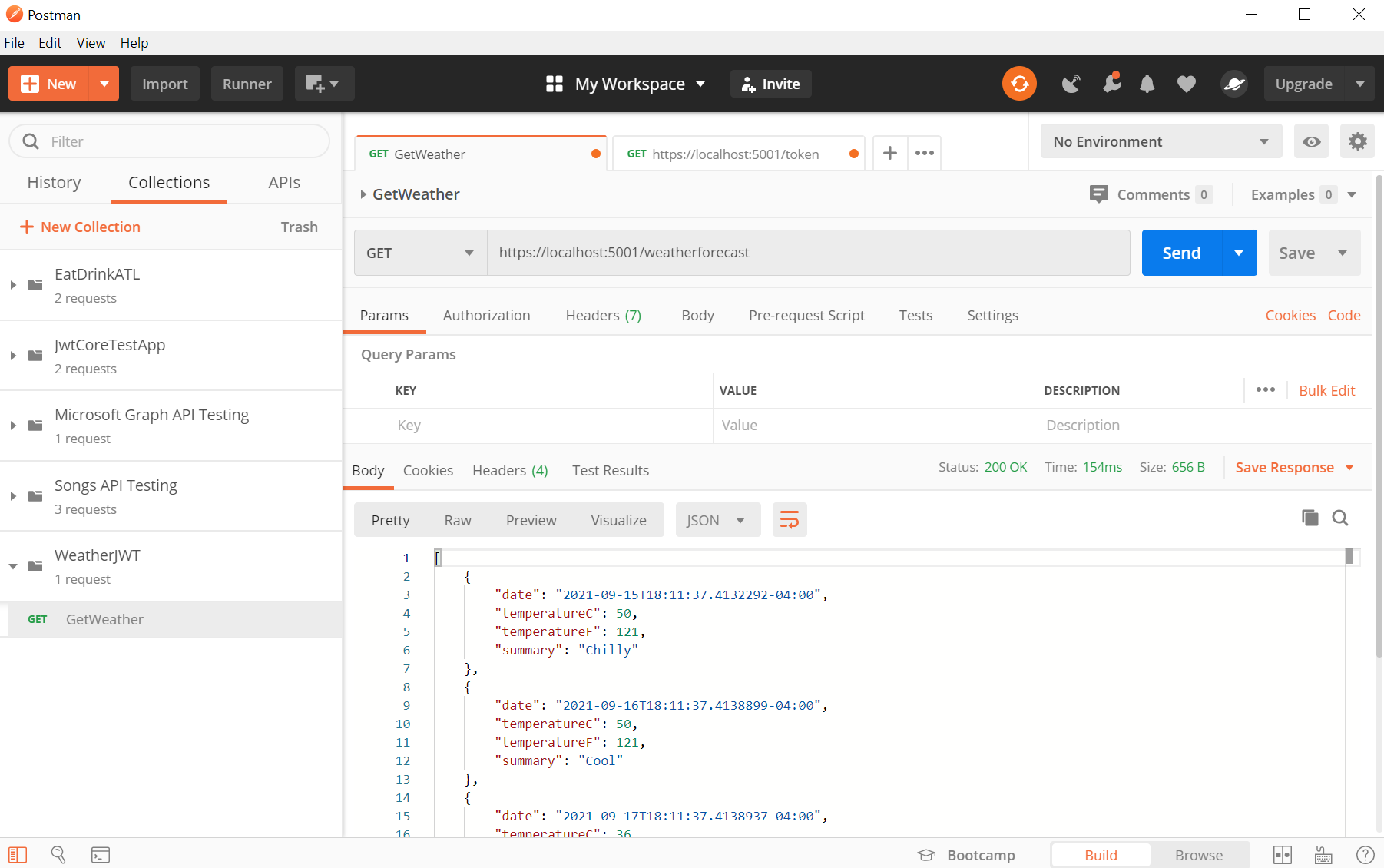

PostMan Fetching Weather From the API

Now that we can see that our basic API route is working, let's protect this route from unauthorized users. In our WeatherForecastController.cs file, let's add the Authorize attribute:

[ApiController]
[Authorize]
[Route("[controller]")]
public class WeatherForecastController : ControllerBase
{
  ...

When we try to get the weather forecast again, we now get a 401 Unauthorized error from the API.

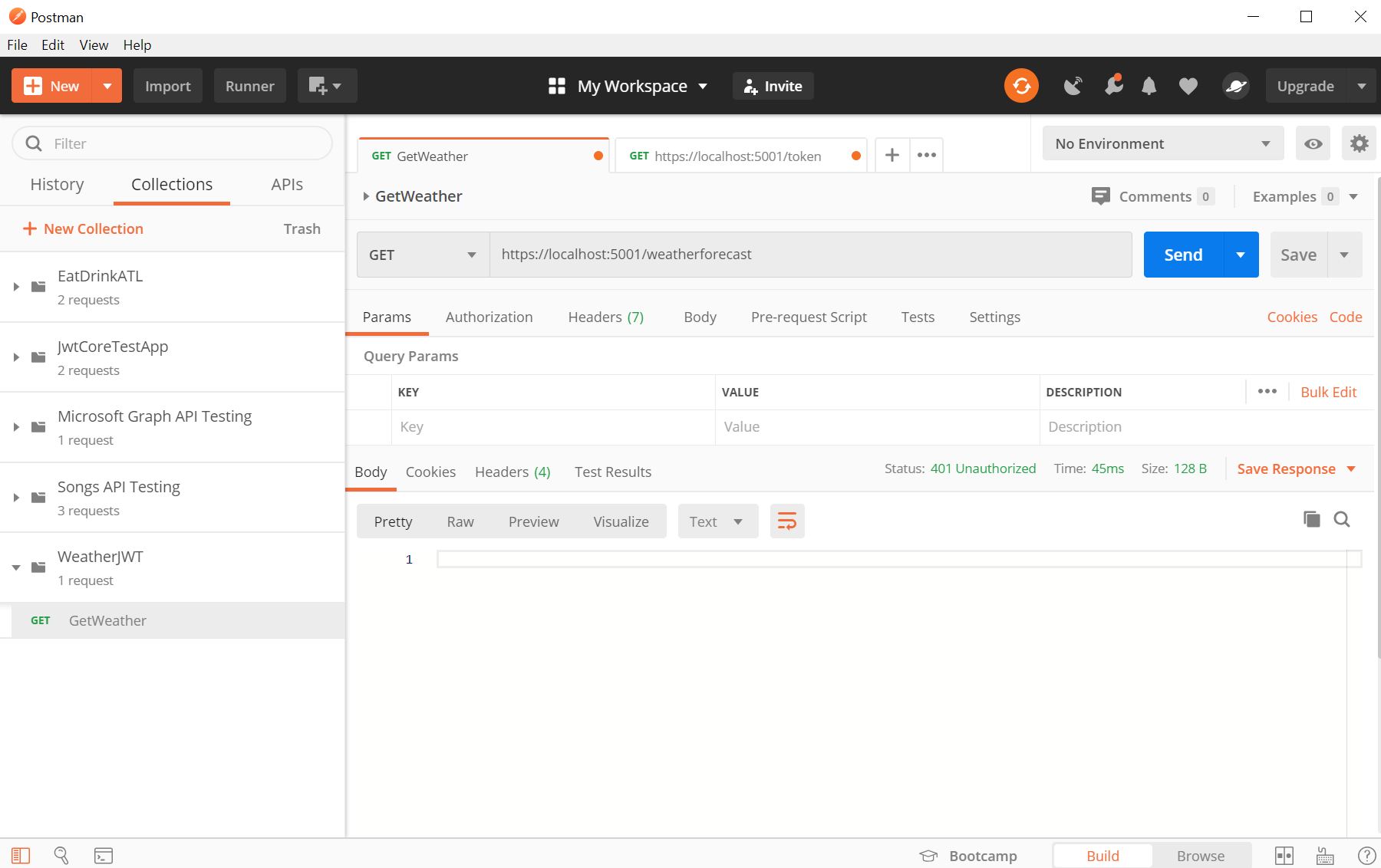

Unauthorized Response from WebAPI

Setup JWT

Microsoft adds a very handy package to assist in setting up JWTs for your WebAPI. You will need to install the following package from nuGet:

Microsoft.AspNetCore.Authentication.JwtBearer

You can use the command line or the built-in tools in your IDE if you're using JetBrains Rider or Visual Studio. To use the command line, run the following:

dotnet add package Microsoft.AspNetCore.Authentication.JwtBearer

Next, let's configure our app settings. Open up your appsettings.Development.json file to get started, and add the details of your JWT. The following shows an example of the full appsettings.Development.json file for reference.

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft": "Warning",
      "Microsoft.Hosting.Lifetime": "Information"
    }
  },
  "Jwt": {
    "Key": "ThisismysupersecretJWTkey!",
    "Issuer": "www.chrisperko.net",
    "Audience": "https://localhost:5001/"
  }
}

Next, let's modify our ConfigureServices method in the Startup.cs file. Here is the full method, everything after the Swagger setup is for JWTs:

public void ConfigureServices(IServiceCollection services)
{
    services.AddControllers();
    services.AddSwaggerGen(c =>
    {
        c.SwaggerDoc("v1", new OpenApiInfo { Title = "LearnJwt", Version = "v1" });
    });

    services.AddAuthentication(options =>
    {
        options.DefaultAuthenticateScheme = JwtBearerDefaults.AuthenticationScheme;
        options.DefaultChallengeScheme = JwtBearerDefaults.AuthenticationScheme;
        options.DefaultScheme = JwtBearerDefaults.AuthenticationScheme;
    }).AddJwtBearer(options =>
    {
        options.SaveToken = true;
        options.RequireHttpsMetadata = false;
        options.TokenValidationParameters = new TokenValidationParameters()
        {
            ValidateIssuer = true,
            ValidateAudience = true,
            ValidateLifetime = true,
            ValidateIssuerSigningKey = true,
            ValidIssuer = Configuration["Jwt:Issuer"],
            ValidAudience = Configuration["Jwt:Audience"],
            IssuerSigningKey = new SymmetricSecurityKey(Encoding.UTF8.GetBytes(Configuration["Jwt:Key"]))
        };
    });
}

The importan thing to note here is that we are using the settings from our appsettings file (appsettings.Development.json when we are running locally). This makes it very easy to modify when setting up your settings for a staging or production environment.

Now, let's update our Configure method within the same Startup.cs file. We need to tell it to use Authentication, and we can place that just before the UseAuthorization() call. Here is the full method, you only need to add the one line.

public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
    if (env.IsDevelopment())
    {
        app.UseDeveloperExceptionPage();
        app.UseSwagger();
        app.UseSwaggerUI(c => c.SwaggerEndpoint("/swagger/v1/swagger.json", "LearnJwt v1"));
    }

    app.UseHttpsRedirection();

    app.UseRouting();

    app.UseAuthentication(); # ADD THIS!
    app.UseAuthorization();

    app.UseEndpoints(endpoints => { endpoints.MapControllers(); });
}

Create a Login Endpoint

As I stated earlier, we won't be building out any authentication logic. We simply need to create an API endpoint that can take a given username (which we will not be checking if it exists), and pass back a valid JWT token for this user. The user can then use that JWT token to get their weather forecast.

Create a new controller, let's call it LoginController.cs. We will add a Login method which takes a username, and creates a JWT token for it.

using System;
using System.Collections.Generic;
using System.IdentityModel.Tokens.Jwt;
using System.Security.Claims;
using System.Text;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Configuration;
using Microsoft.IdentityModel.Tokens;

namespace LearnJwt.Controllers
{
    [ApiController]
    [Route("[controller]")]
    public class LoginController : ControllerBase
    {
        private IConfiguration _config;

        public LoginController(IConfiguration config)
        {
            _config = config;
        }

        [HttpGet]
        public string Get(string username)
        {
            var authClaims = new List<Claim>
            {
                new(ClaimTypes.Name, username)
            };
            var authSigningKey = new SymmetricSecurityKey(Encoding.UTF8.GetBytes(_config["Jwt:Key"]));

            var token = new JwtSecurityToken(
                issuer: _config["Jwt:Issuer"],
                audience: _config["Jwt:Audience"],
                expires: DateTime.Now.AddHours(3),
                claims: authClaims,
                signingCredentials: new SigningCredentials(authSigningKey, SecurityAlgorithms.HmacSha256)
            );

            return new JwtSecurityTokenHandler().WriteToken(token);
        }
    }
}

Let's test it out! Let's point PostMan to our Login route and pass in a username (I used 'chris'). Our response is our new JWT token for this user!

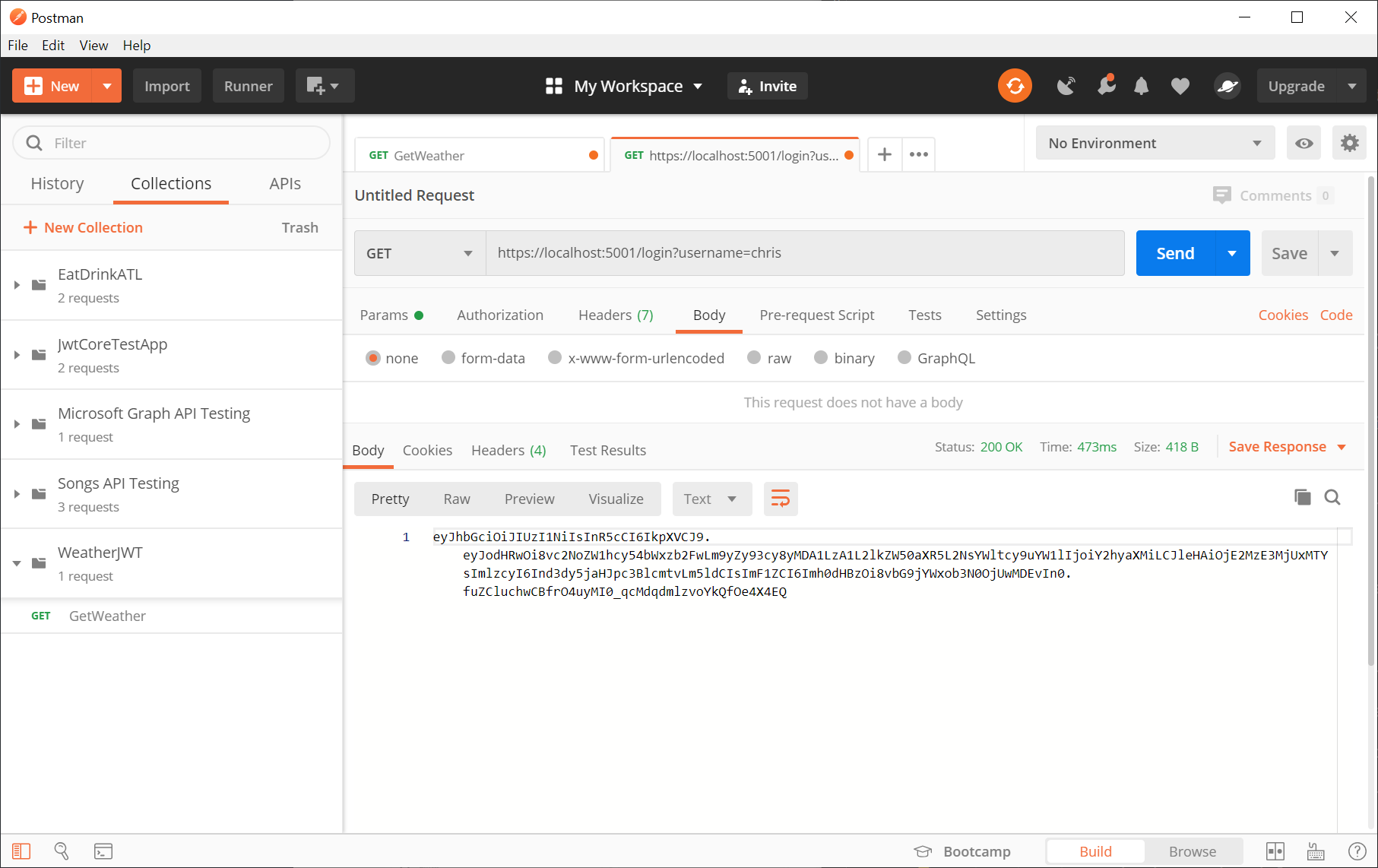

Getting our Token

We can then use that token to fetch the weather forecast by using it in the authorization tab within PostMan.

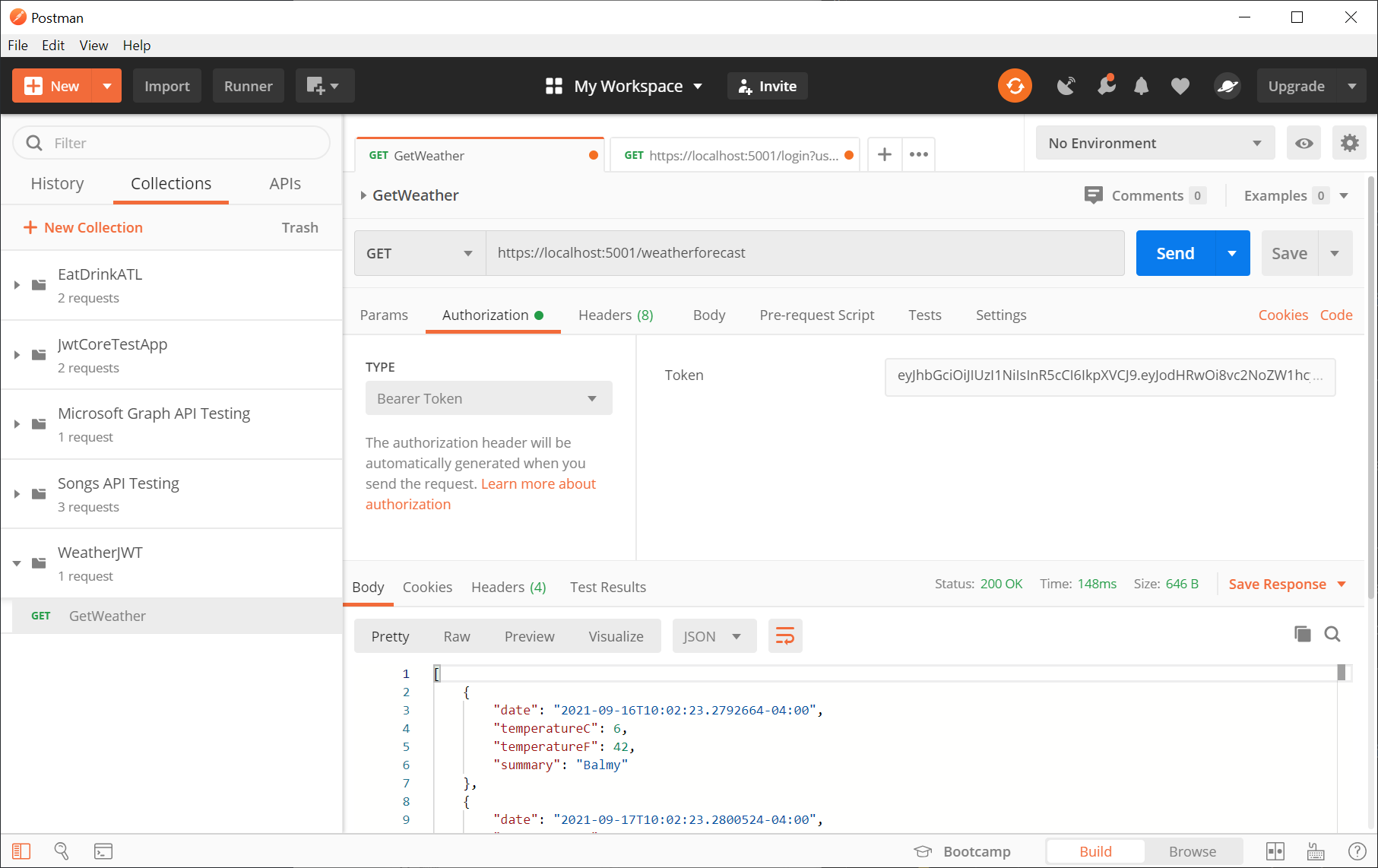

Getting the Forecast with the JWT Token
